Dinosaur Electronics Replacement 3850712.01

  • Sale
  • $ 275.00
  • $ 351.49
  • 2 available

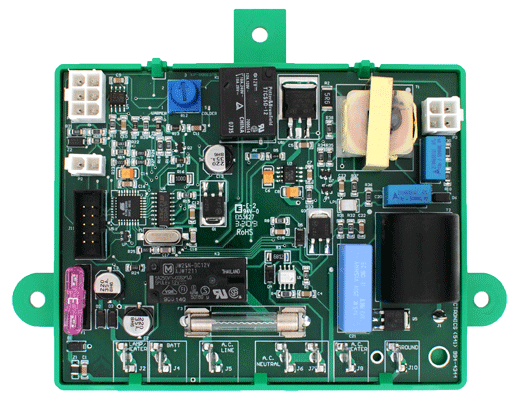

Dinosaur Electronics 3850712.01 Replacement

* Use the 3850712.01 to replace Dometic's® 3850712-xxx Black Box Board
*Built in Ignitor.
*2-way or 3-way operation.
*Fuse protected.
*Variable Temperature adjustment for those FIXED TEMP refrigerators.
*The CHECK light comes on after each ignition to sense a flame.
*Repeats the 3 try ignition cycle at 30 minute intervals if no flame is sensed.
** In 3-way models, the DC element will drop out and the DC mode light       will flash, if the voltage level falls too low  for more  than 10 seconds.
*Easy to remove cover included
*Instruction sheet
*Three year warranty
101


Dinosaur Electronic's 3850415.01 replacemnt board

*The 3850712.01 is designed to replace Dometic's® part number 3850712-xxx. Do not attempt to replace
other Black Box Board part number with this board.
If replacing a 3850415-xxx please use a Dinosaur's part 3850415.01
If replacing a Black Box Board with a part number that begins with "293" please use a Dinosaur's part MICRO P-711
